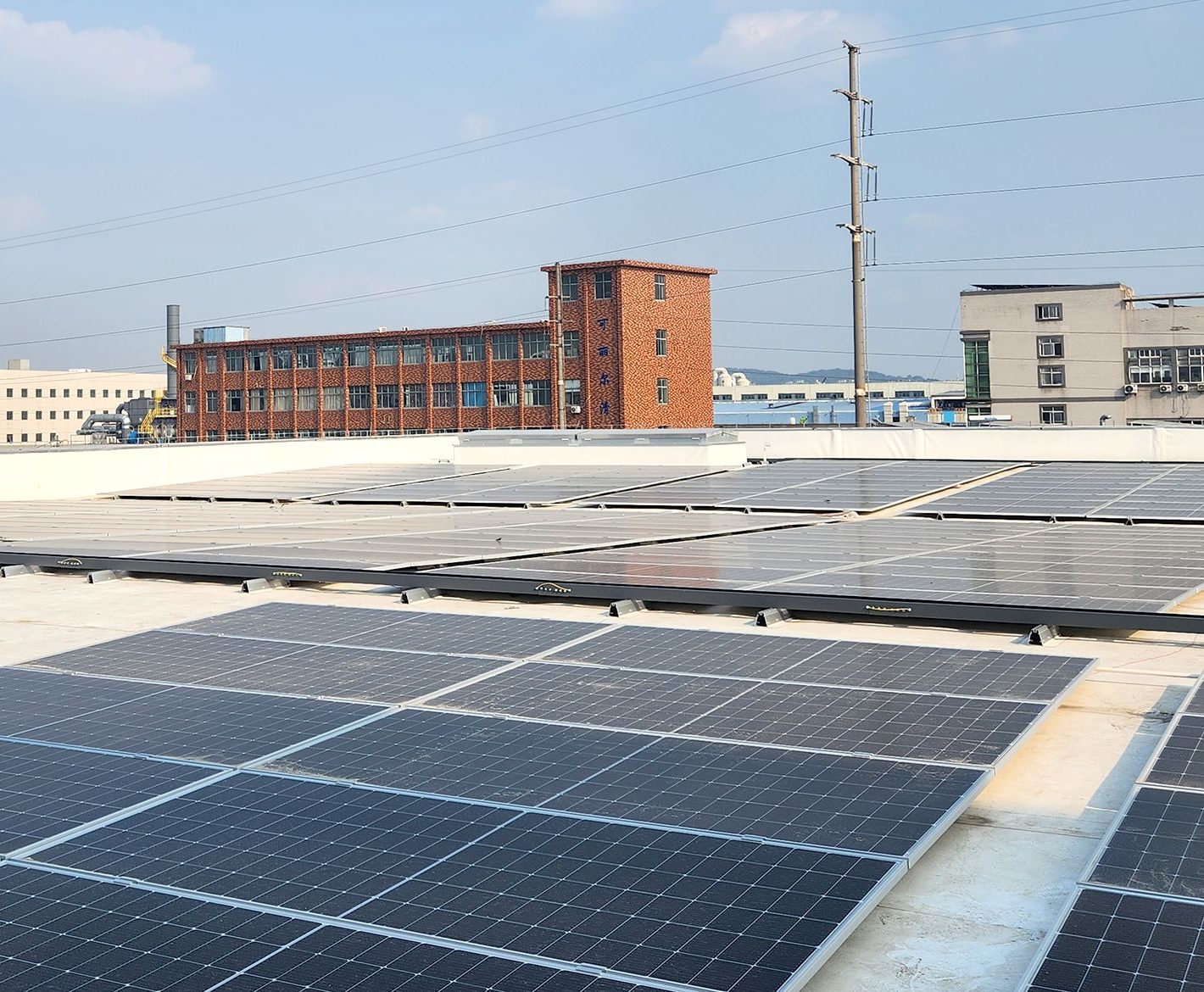

TPO/PVC/EVA ROOF

Flat Installation Bracket

Type: HL-M-F

HL-M-F solar bracket system specifically designed for TPO/PVC/EVA membrane roofs. It adopts the same hot-melt welding process as the original roof construction, without drilling holes or ballasting.
This effectively eliminates potential water leakage risks and ensures the long-term safety of the entire PV system.

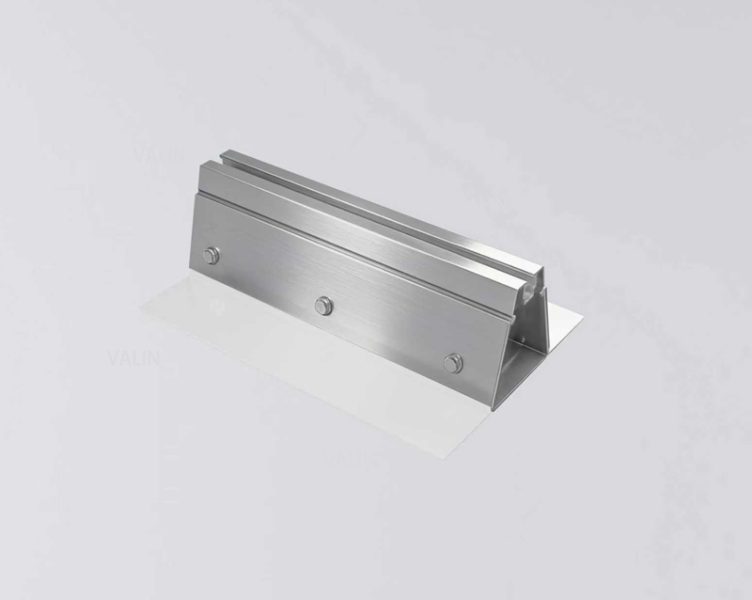

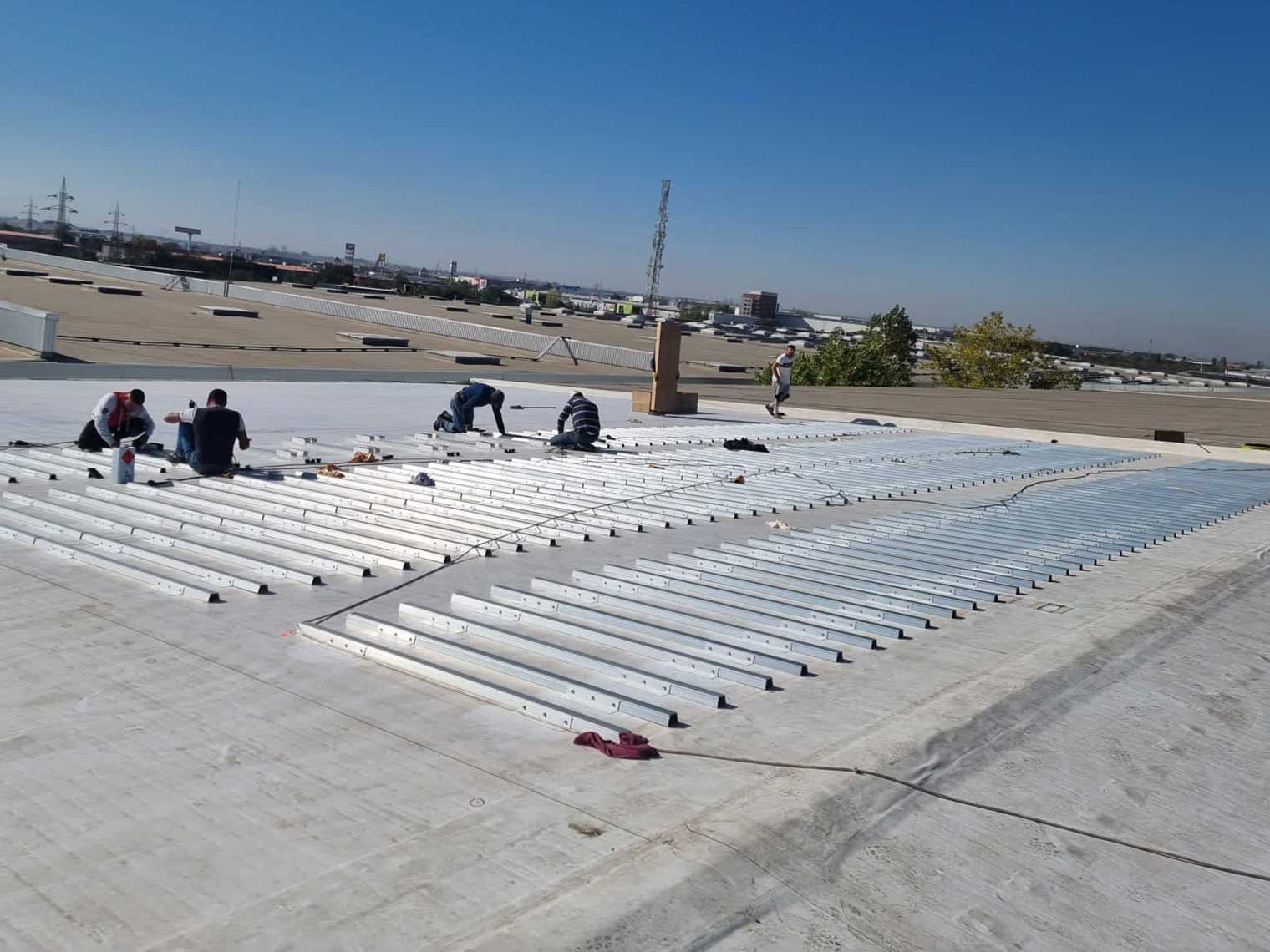

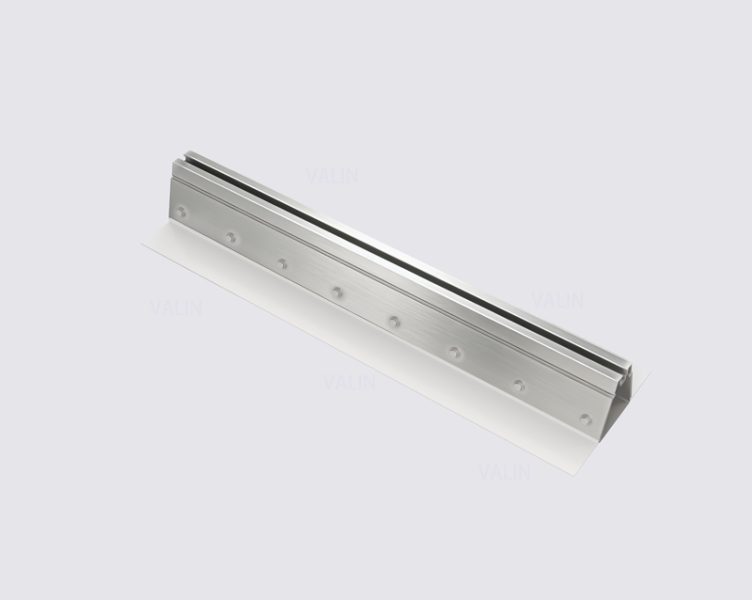

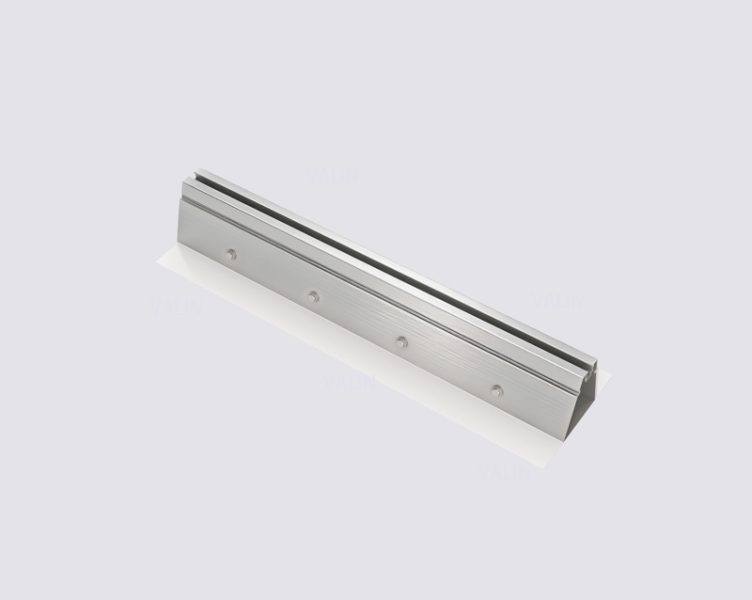

After the integrated Membrane-Rail base is welded onto the roof, the solar panel is directly fastened to the base with clamps.
Suitable for all types and specifications of solar panels.

TPO/PVC/EVA ROOF

South Tilt Installation Bracket

Type: HL-M-S

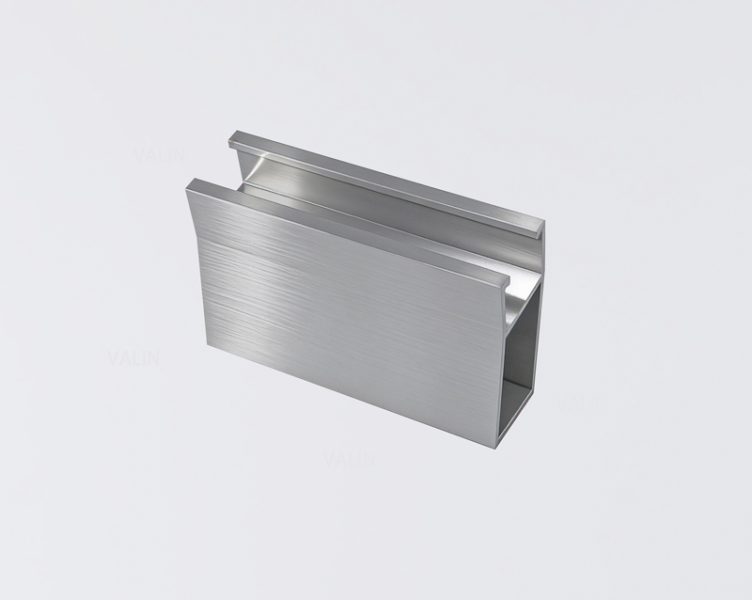

Building on the HL-M-F model, we add front and rear columns as well as diagonal braces to the integrated base. This design maintains the PV panels at a 10° south-facing tilt, which effectively boosts power generation while reducing dust accumulation on the panel surfaces.
It adopts the same hot-melt welding process as the original roof construction, without drilling holes or ballasting.
This effectively eliminates potential water leakage risks and ensures the long-term safety of the entire PV system.
After the integrated Membrane-Rail base is welded onto the roof, the solar panel is directly fastened to the base with clamps.
Suitable for all types and specifications of solar panels.

TPO/PVC/EVA ROOF

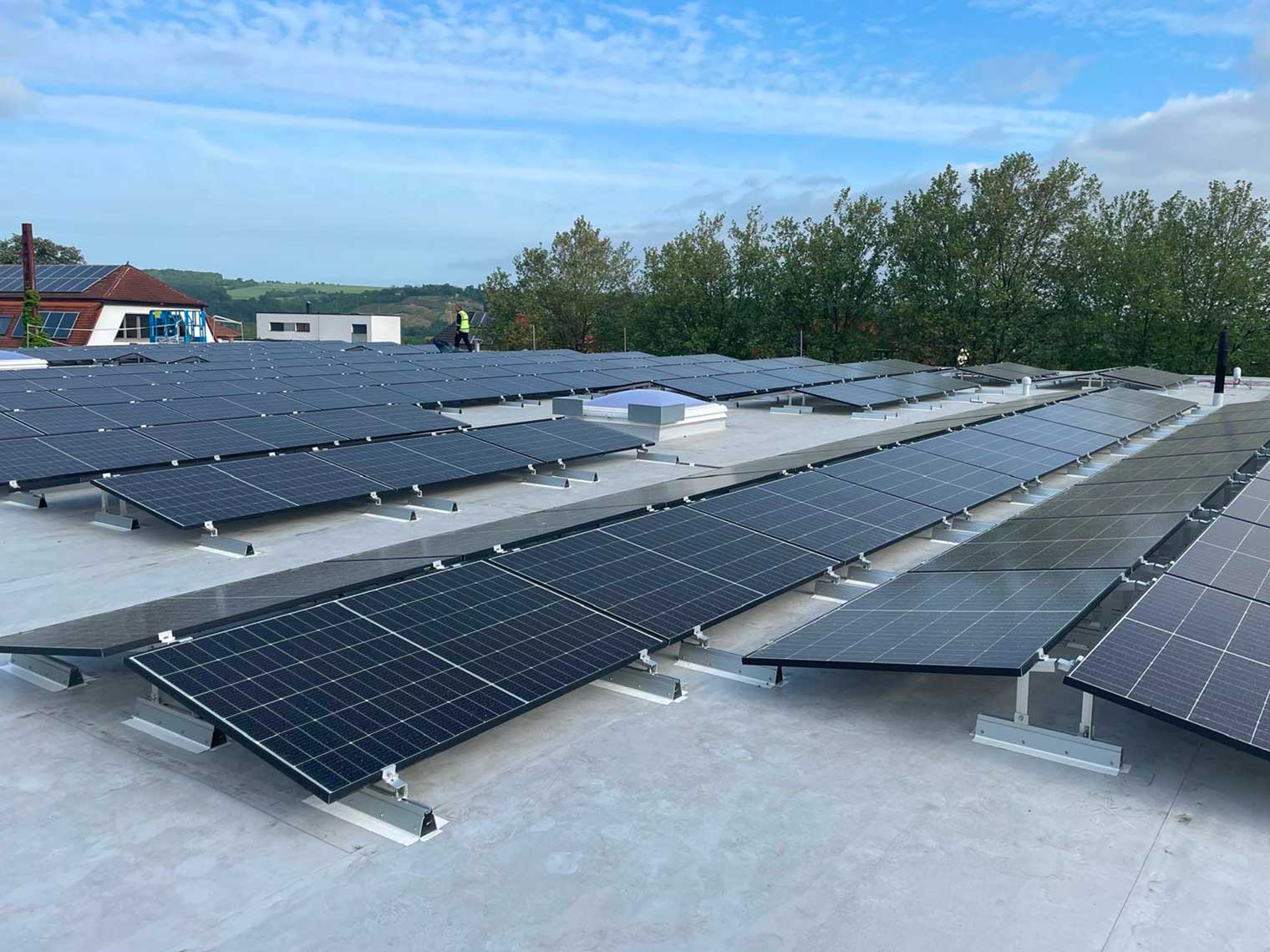

East-West Installation Bracket

Type: HL-M-EW

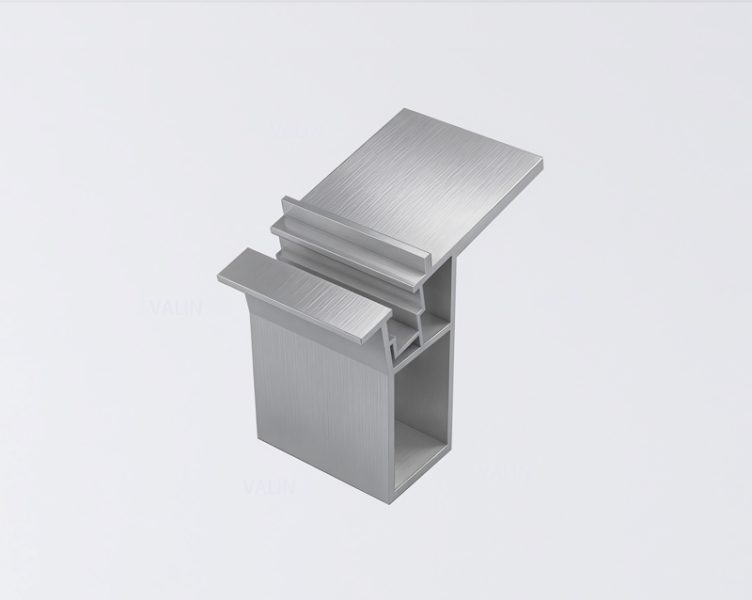

Building on the HL-M-F model, we add angle-adjusting components to the integrated base, maintaining the PV modules at a 10° east-west tilt. This design not only significantly enhances wind resistance but also ensures stable power output throughout the generation period.
It adopts the same hot-melt welding process as the original roof construction, without drilling holes or ballasting.
This effectively eliminates potential water leakage risks and ensures the long-term safety of the entire PV system.
After the integrated Membrane-Rail base is welded onto the roof, the solar panel is directly fastened to the base with clamps.
Suitable for all types and specifications of solar panels.

TPO/PVC/EVA ROOF

Flexible Panels Bracket

Type: HL-M-FP

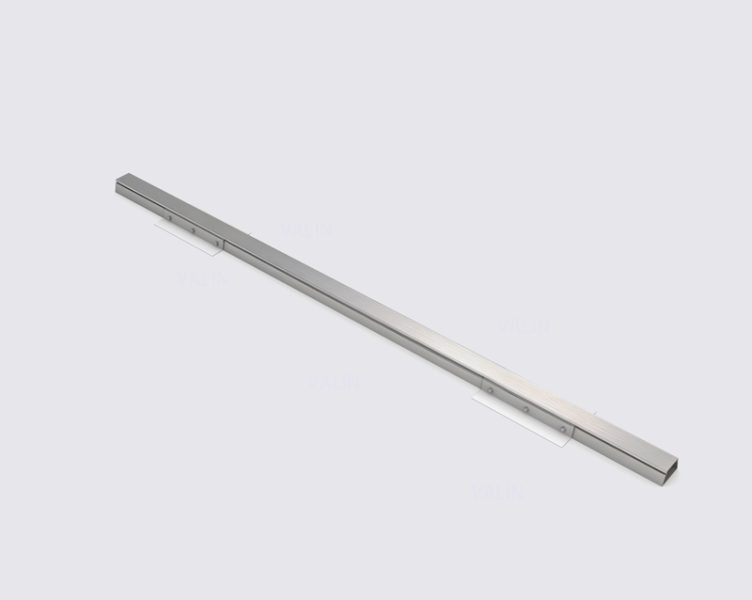

Tailored specifically for lightweight flexible panels, this design accommodates the installation of flexible panels with lengths ranging from 1000mm to 2500mm. By extending the base and increasing its quantity, we provide robust bottom support for flexible panels, eliminating the risk of cell microcracks caused by panel sagging.
It adopts the same hot-melt welding process as the original roof construction, without drilling holes or ballasting.
This effectively eliminates potential water leakage risks and ensures the long-term safety of the entire PV system.
After the integrated Membrane-Rail base is welded onto the roof, the solar panel is directly fastened to the base with clamps.
Suitable for all types and specifications of solar panels.
